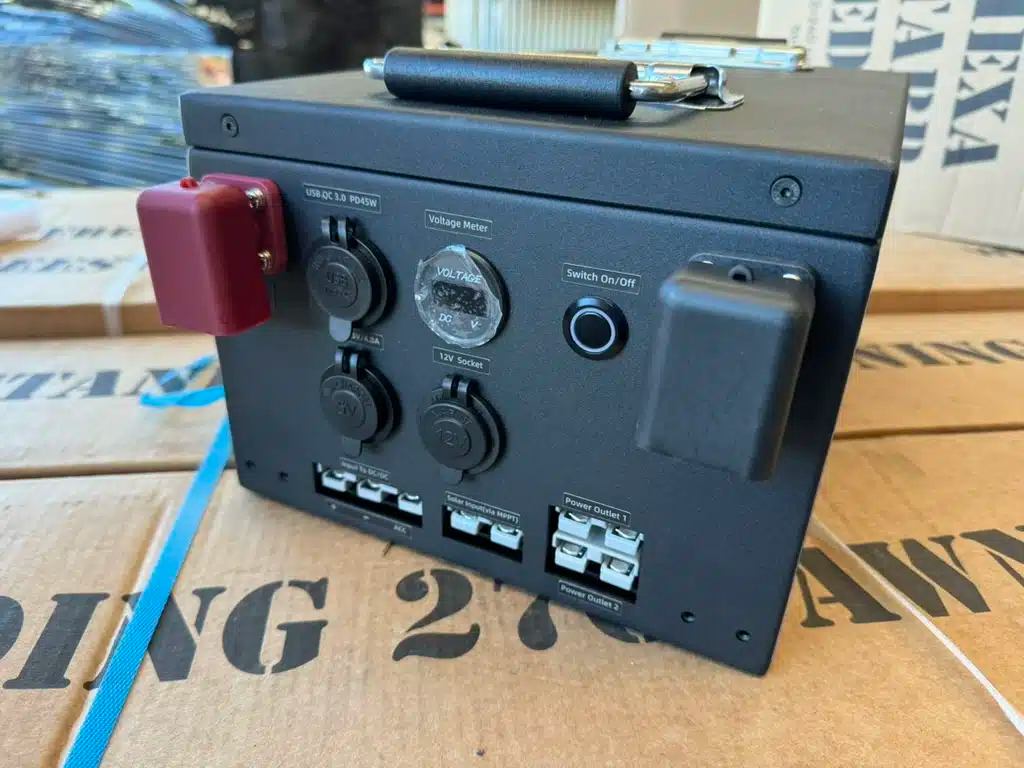

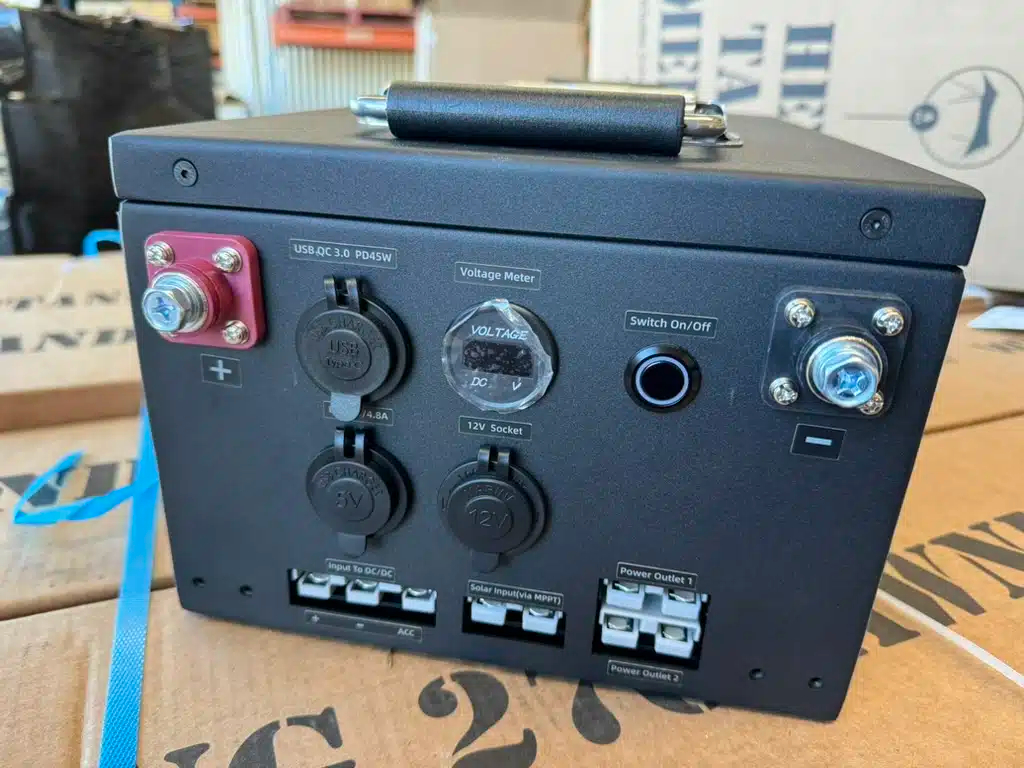

Description

SPECS:

Internal 150A BMS
active balancer 2A

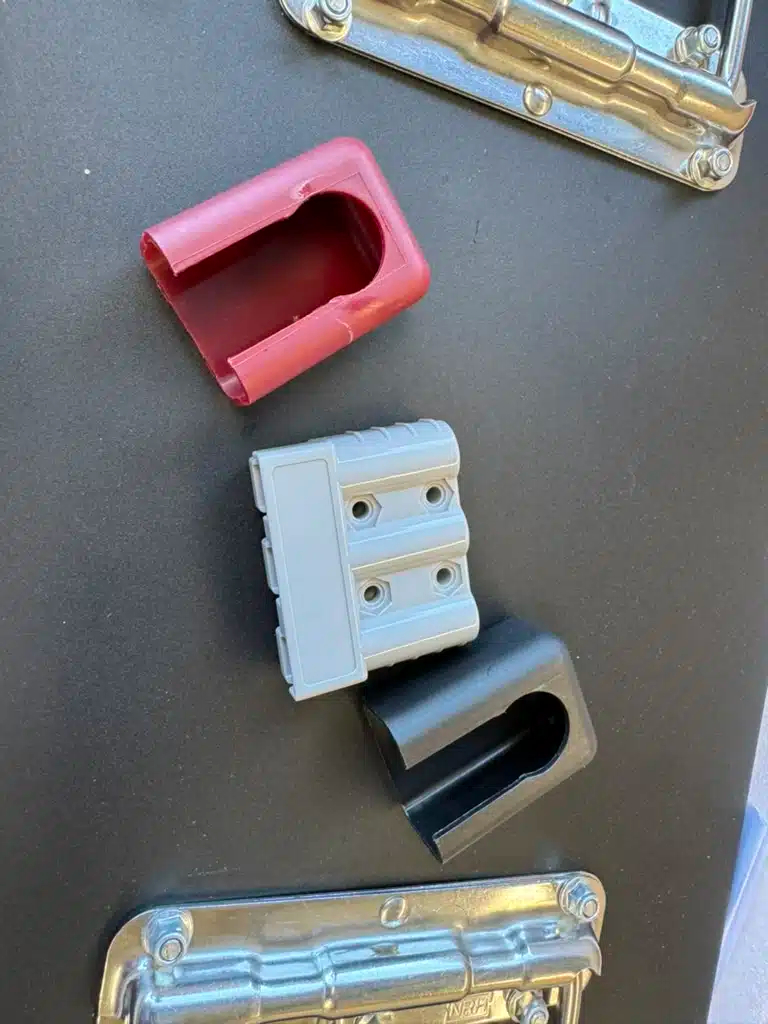

1 x 120A Anderson connector (In/Out)
2 x 50A Anderson connector (In/Out)
2x cigarette lighter sockets
1x 45W USB C charger that can charge laptops (PD to 20V) Capacity 150Ah
Nominal Voltage 12.8V
Type LiFePO4
Charge Voltage 14.6V max Charge Current 60A max continuous
Discharge Current 150A continuous
Operating Temp 0-55°C
Up to 3000 Charging Cycles

145Ah LiFePO4 Battery Features

Battery Size: 404mm*254mm*183mm
Battery Type: 12.8V/145Ah LiFeP04
BMS built in for battery protection
Circle times:>=4000
Standard charge/discharge current: 71A
Discharge cut-off Voltage: 10V

25A DCDC Charger Features

Dual input from both solar and alternator
Built inside to protect well from outside harsh environments
Efficiency up to 95%
DC Input Voltage Range: 11V-24V
Solar Input Voltage Range:12V-26V
Max Input Current:28A

SIZE AND WEIGHT
404mm long, 254mm wide, 183mm high, 16KG
