Description
These premium AGM batteries have been specially developed to provide reliable and long lasting deep cycle 12v power. Deep cycle power enables you to power essential items you need when camping or living on the road – such as fridges, lights, battery chargers, more – and these Drifta Stockton AGM batteries are premium high quality grade.
Available in 2 sizes…

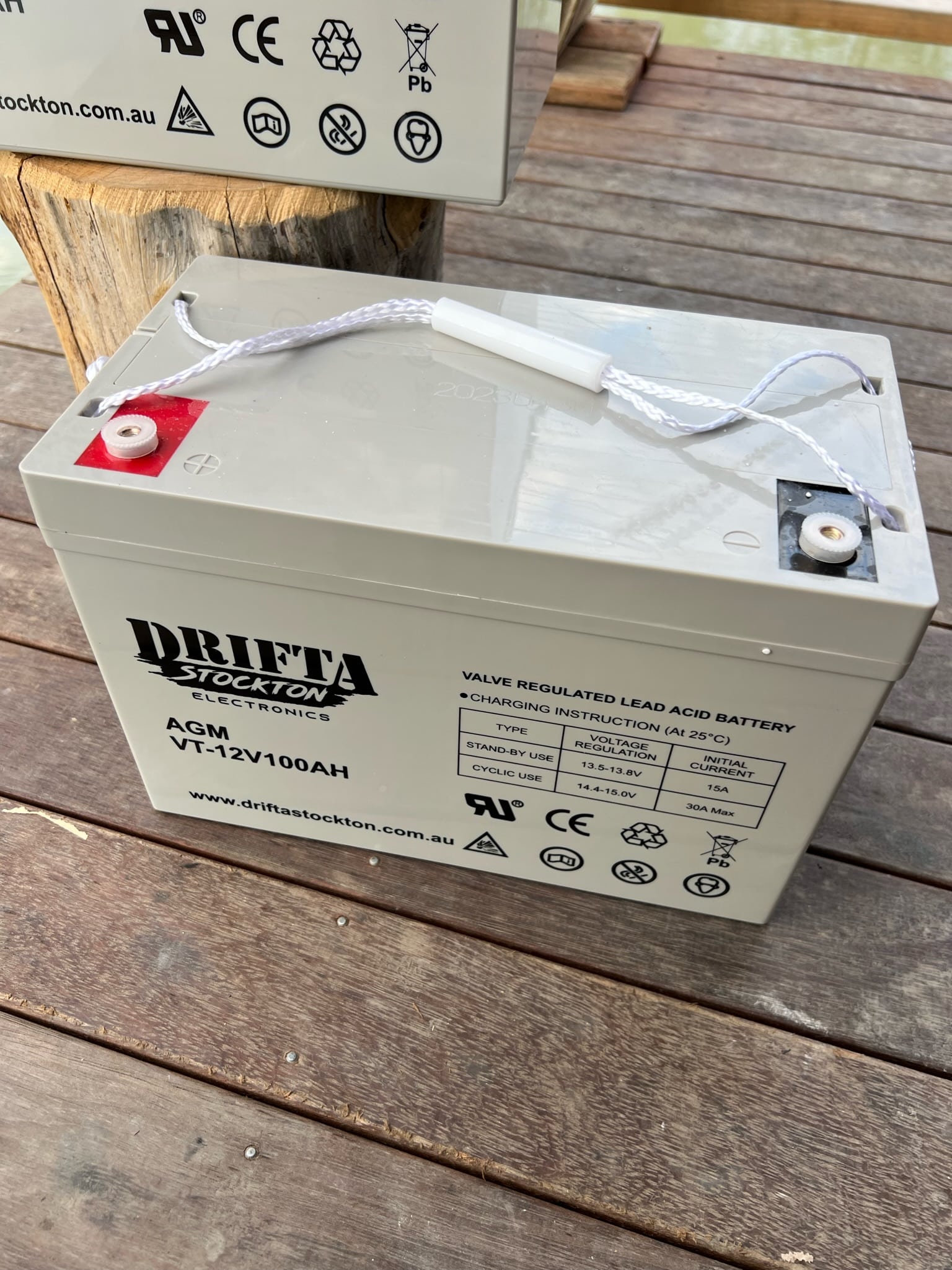

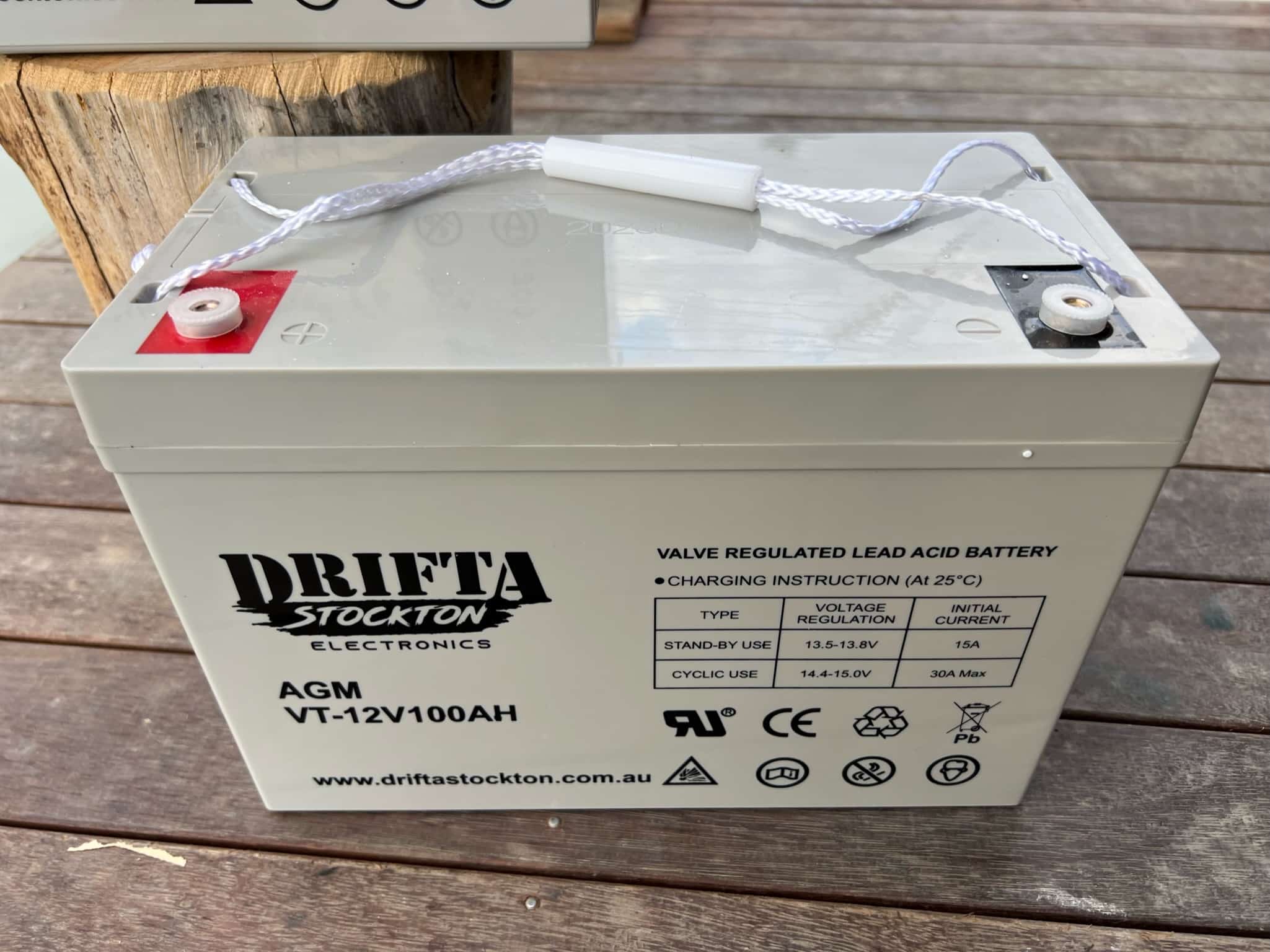

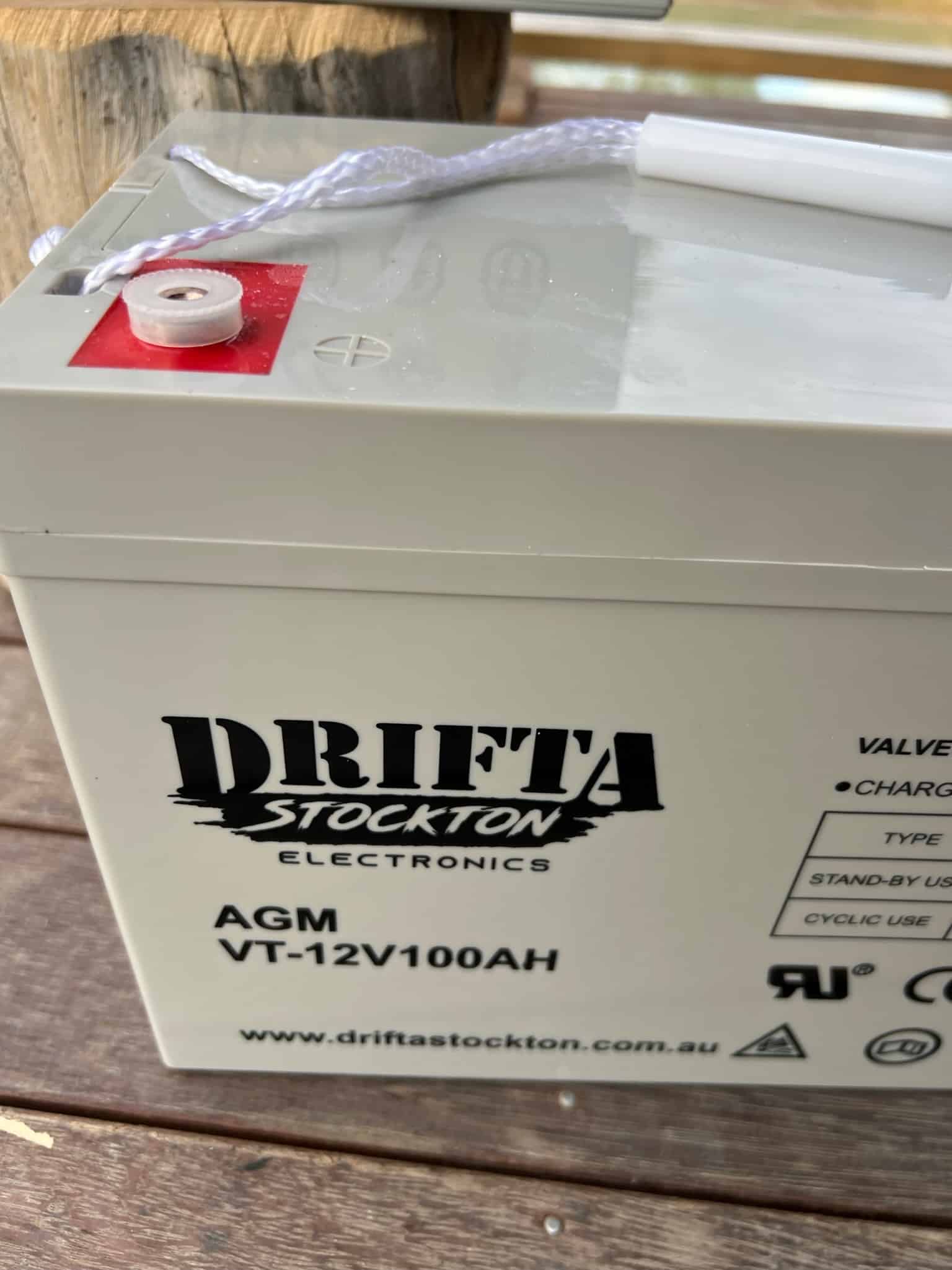

- 100ah –307L x 169W x 208H (218 with cables) – weight 28kgs
- Slightly smaller and lighter – normally the preferred battery where an ‘under bonnet’ install is required.

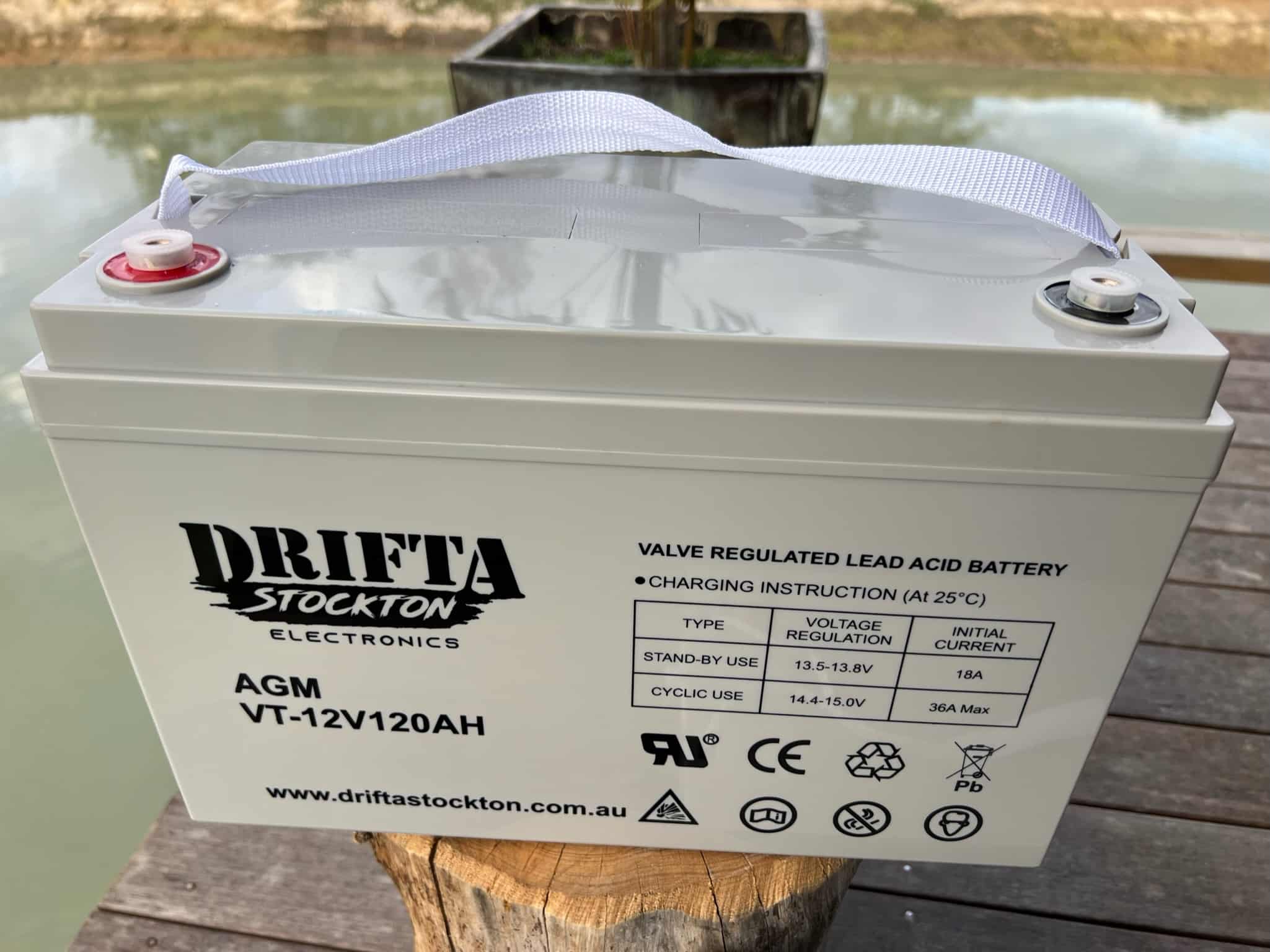

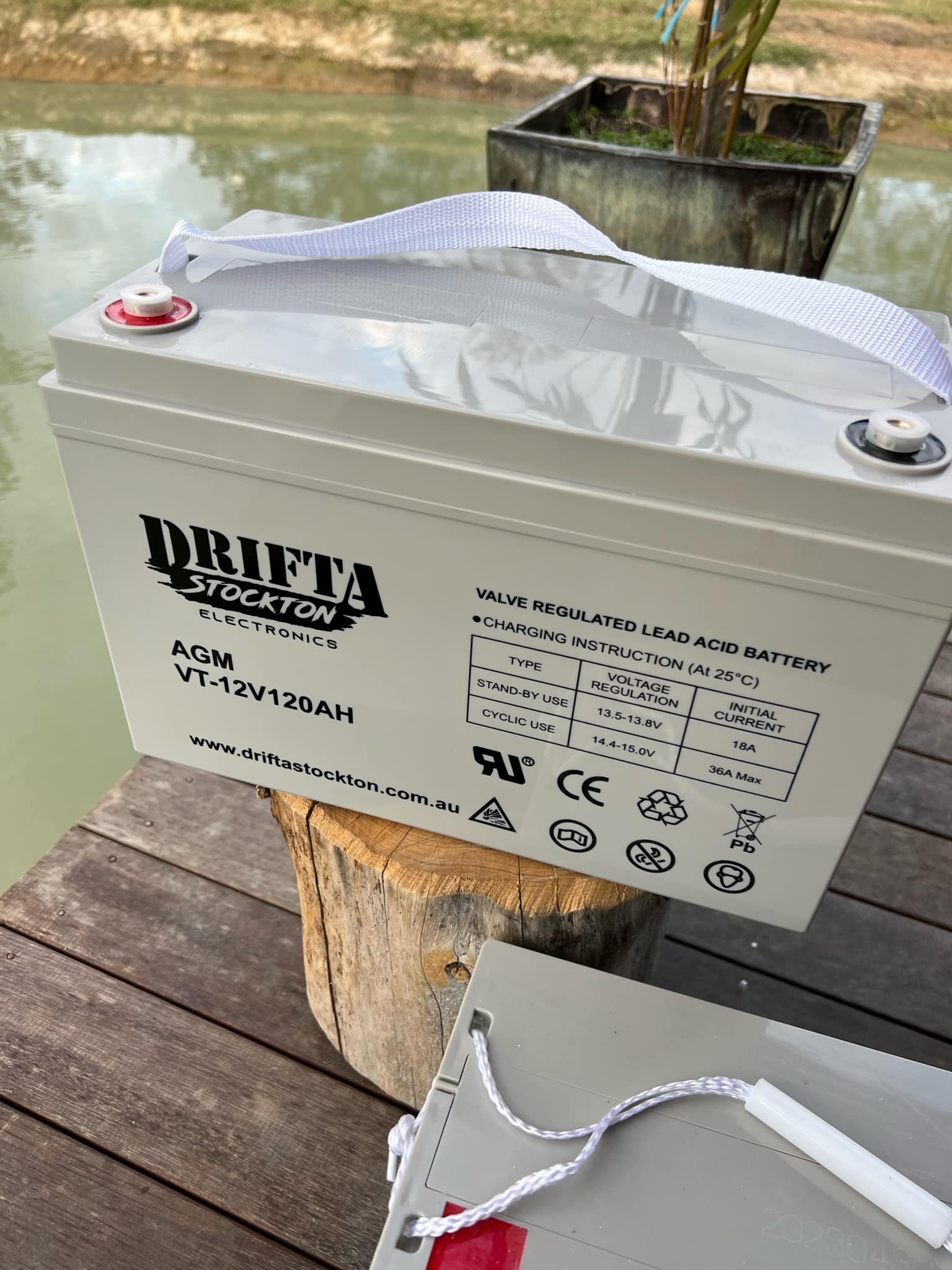

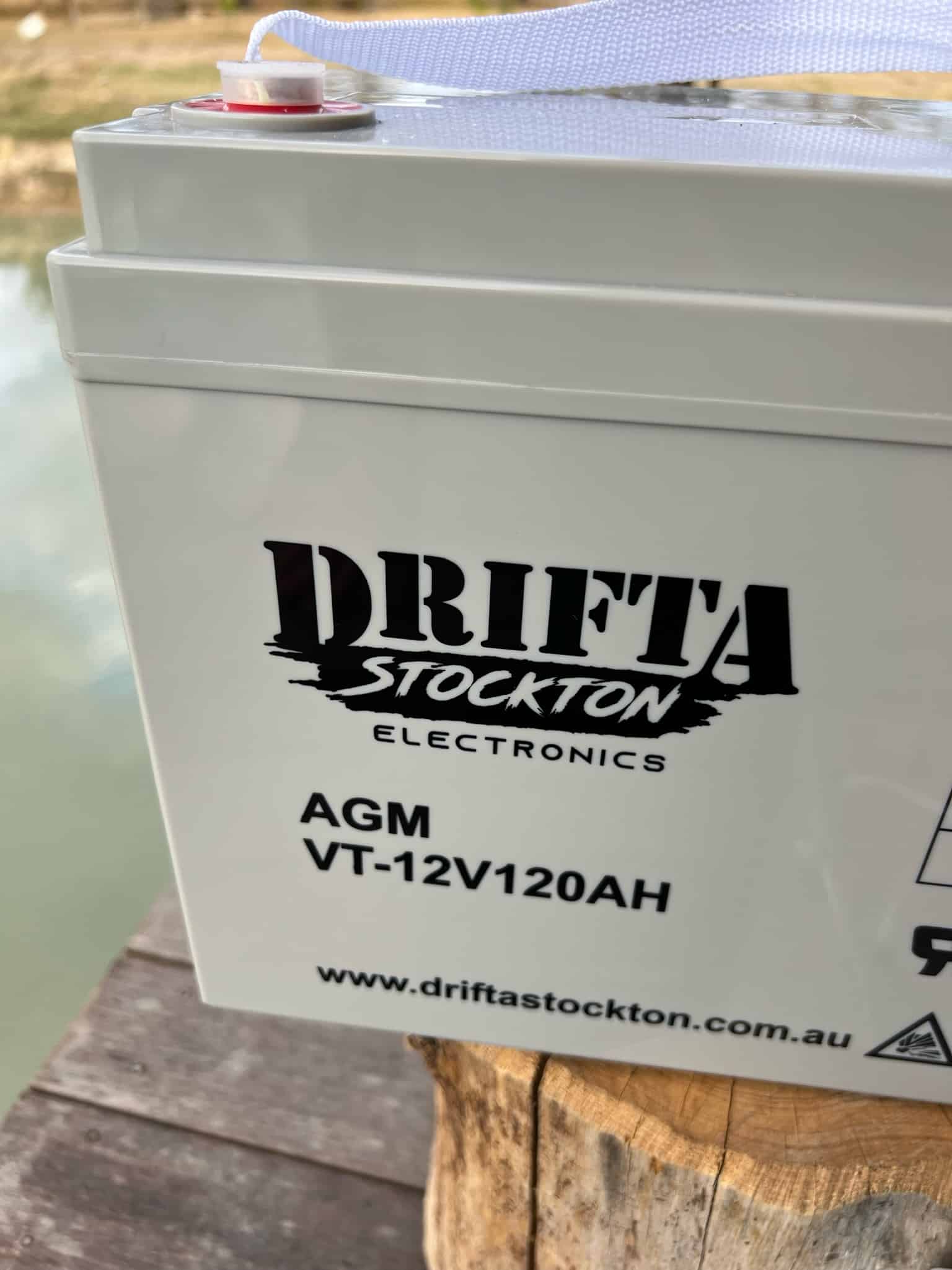

- 120ah – 330L x 173W x 212H (222H with cables) – weight 31.5kgs
- Slightly larger casing and larger capacity – mostly this is used where there is sufficient space to allow for it (built into a drawer / storage system).
Features
High performance plates and electrolytes to gain maximum power output.
Fully sealed batteries.
Maintenance free.
Safe for external or internal mounting.
Built tough ABS casing.
SPECS
| Deep cycle AGM battery | ||
| Characteristic | Model | |
| 12V100AH | 12V120AH | |
| Lead Grid Purity | 99.70% | 99.70% |
| Nominal Voltage | 12V | 12V |
| Nominal Capacity (C20 to 10.5V) | 100AH | 120AH |
| Cycles at 30% Depth of Discharge | Up to 1500 | Up to 1500 |
| Cycles at 50% Depth of Discharge | Up to 800 | Up to 800 |
| Cycle Charge Voltage @ 25°C | 14.4-14.8V(-30mV/ C) | 14.4-14.8V(-30mV/°C) |
| Float Charge Voltage @ 25°C | 13.6-13.8V(-20mV/ C) | 13.6-13.8V(-20mV/°C) |
| Max Charging Current | 30A | 36A |
| Max Discharge Current (5 Seconds) | 1500A | 1800A |
| Operating Temperature – Discharging | -15°C to +45°C | -15°C to +45°C |
| Operating Temperature – Charging | -15°C to +40°C | -15°C to +40°C |
| Operating Temperature – Storage | -15°C to +40°C | -15°C to +40°C |
| Hardware included | 2x M8 Bolts 2x Flat Washers 2x Spring Washers | 2x M8 Bolts 2x Flat Washers 2x Spring Washers |
